Pneumatic Dual Stage TFP09 Gallery

Precision crafted HP3070 fixture with Vortex cooling, NanoVTEP access, and Xprobe Wireless integration.

Pneumatic Dual Stage Test Fixture

Take a closer look at this custom-built HP3070 ICT test fixture, designed with a Vortex-cooled, pneumatic dual-stage setup. Featuring 3-axis nanovtep access to the unit under test (UUT) and an array of megafinns, it supports high-accuracy probing. The fixture base uses our Xprobe Wireless system, complete with integrated relays, resistors, clock dividers, and multiple programmers, delivering a powerful and flexible test solution.

ICT (In Circuit Test) Fixture closed, front angle.

In circuit test fixture (ICT), side on angle.

Side on view of an in circuit test fixture.

Picture of an In Circuit Test fixture (ICT) with red actuation probes, top is open.

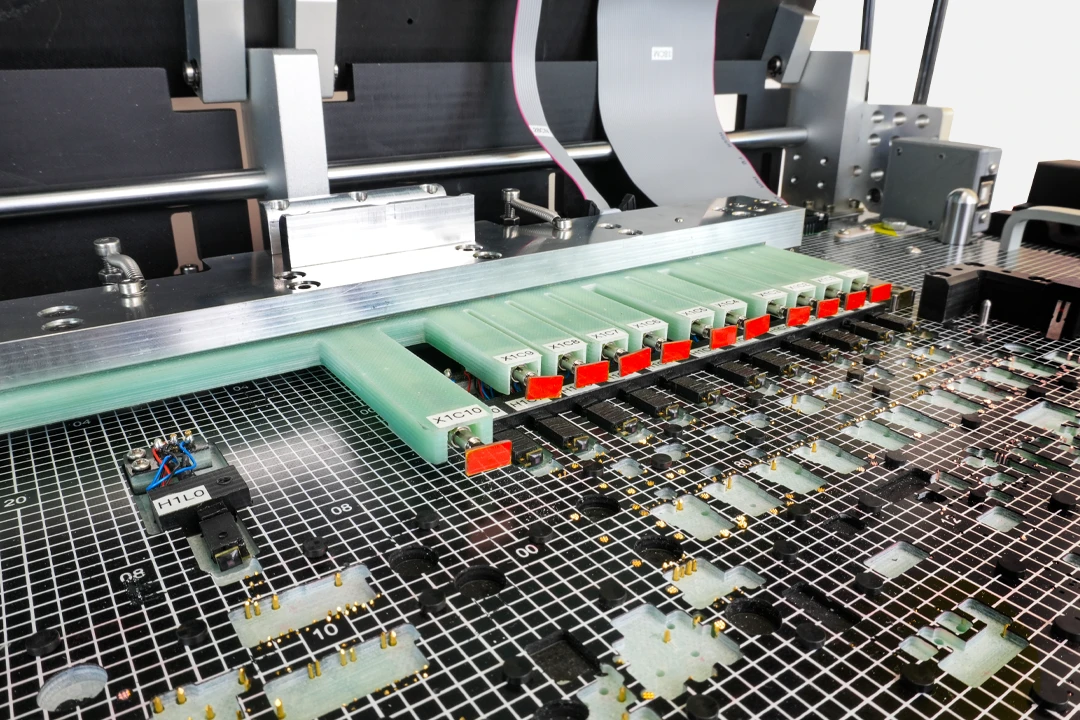

In circuit tester (ICT), open with a close up view of actuation probes.

ICT (In Circuit Test) Fixture open showing actuation probes.

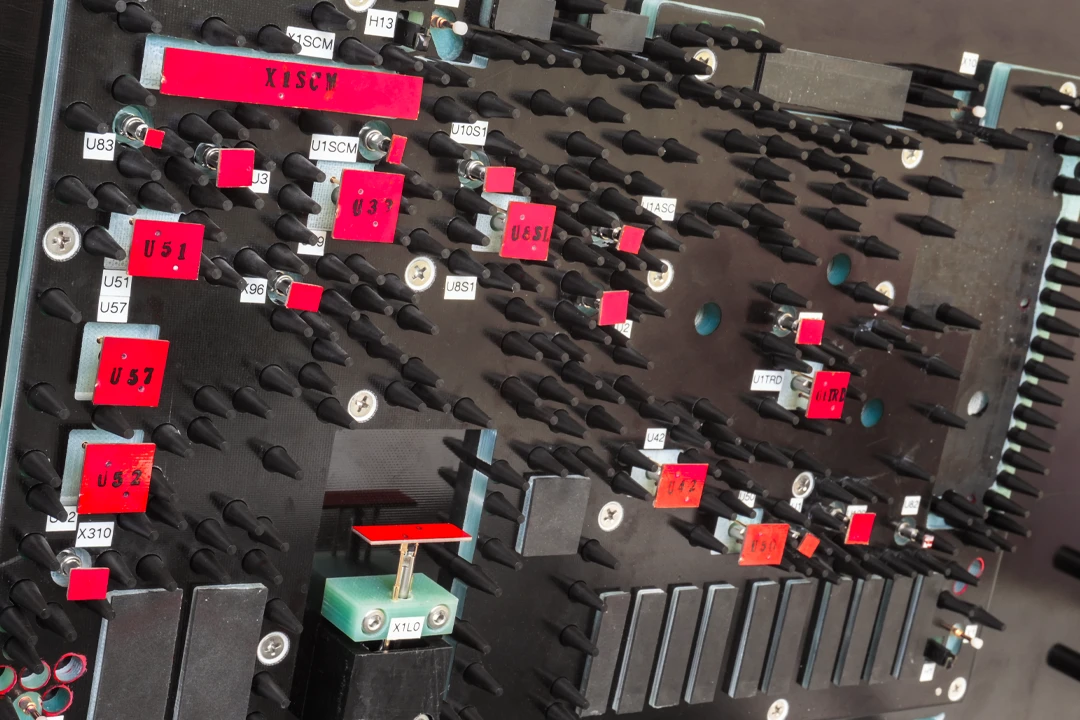

ICT (In Circuit Test) fixture, showing actuation probes. Closeup.

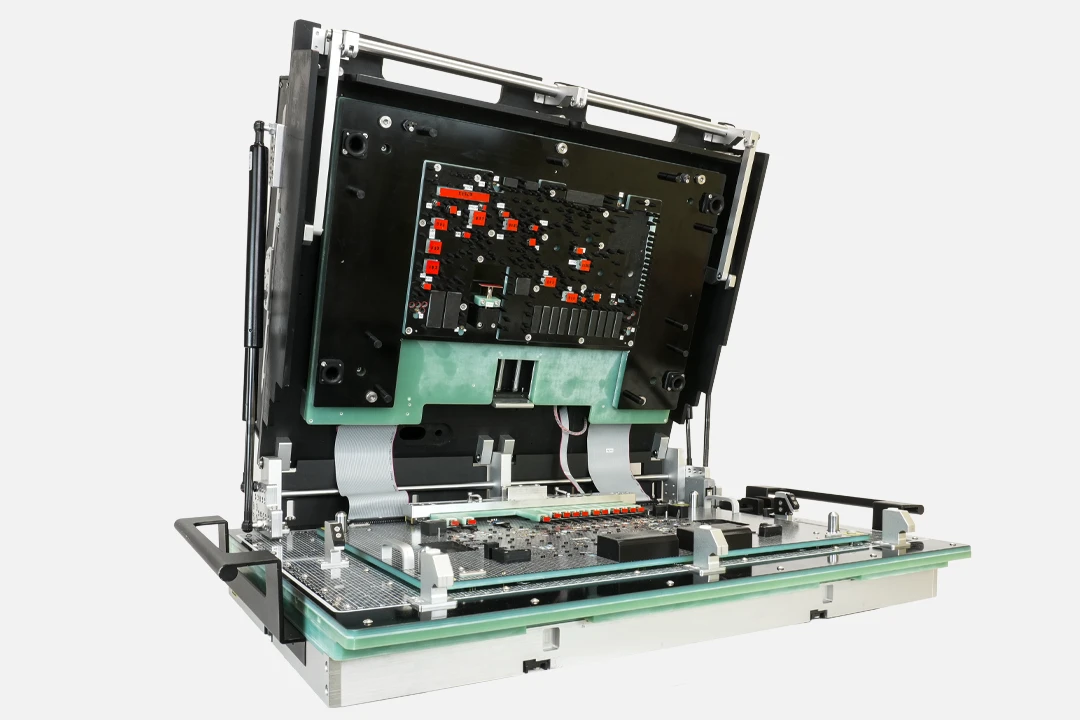

In circuit tester (ICT), open with a side view

Front view of an in circuit test fixture, actuation probes in frame as well as bed of nails testing pins.

Segger flasher, Prog, and a Lattice tester inside of an ICT fixture.

Close up of bed of nails testing probes inside of an In Circuit Test Fixture. A segger flasher is also in frame behind a clear perspex screen.

Top down angle of an ICT Test fixture displaying a Segger Flasher with bed of nails pins in frame.

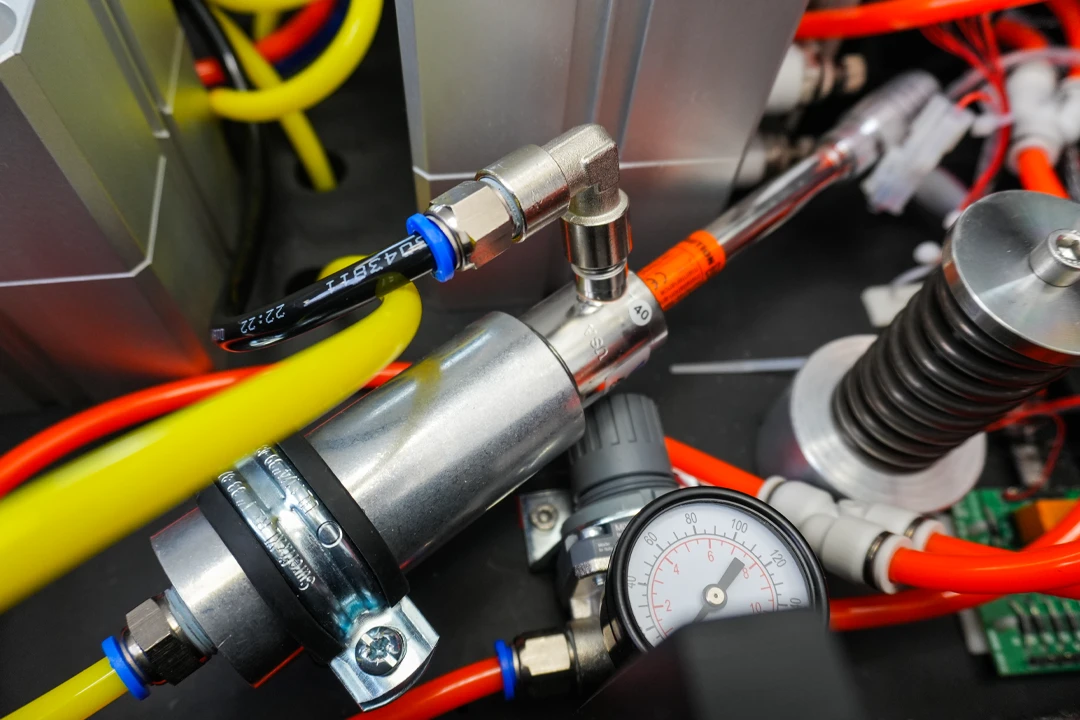

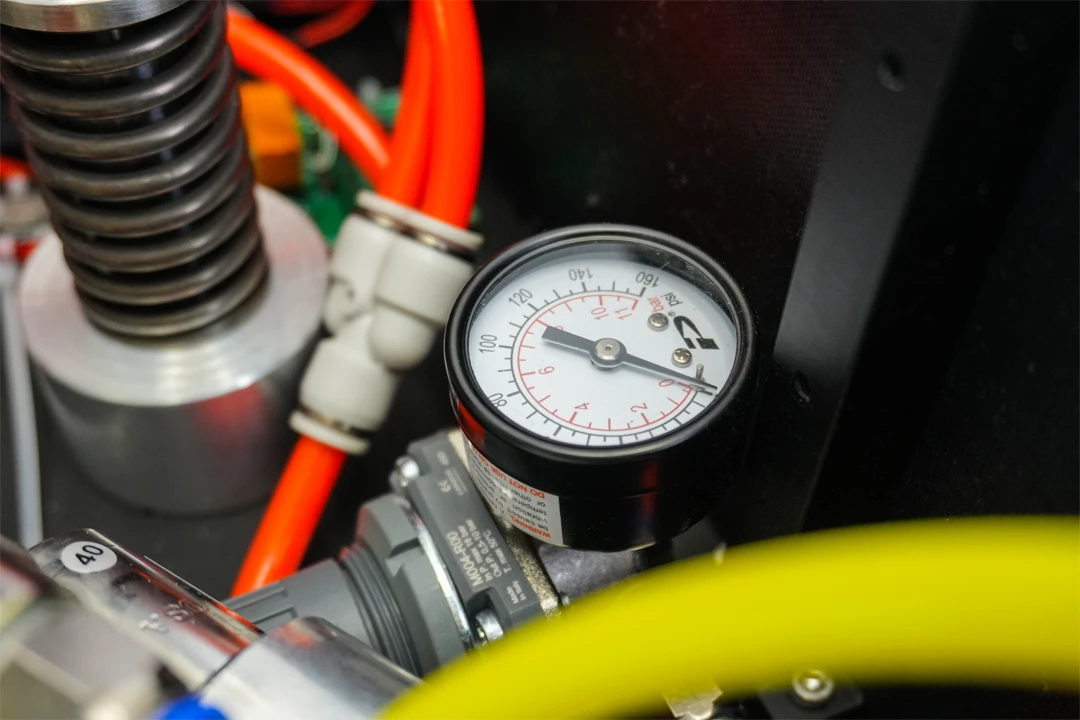

Pressure gauge inside of an In Circuit test fixture.

ICT Test Fixture, front on view with the internals in view.
